Coemar ReLite

LED Retrofitting

Keep the fixture. Upgrade the source. Coemar ReLite kits replace halogen and discharge lamps with LED — strong output, high CRI options and DMX control, without discarding the housing.

See the range

The benefits

Available features depend on your fixtures and the refit selected.

Coemar ReLite

What is retrofitting?

Swapping a whole halogen or discharge installation for new LED fixtures is expensive, and many housings have no direct LED replacement. Coemar’s retrofit kits keep the fixture and replace the lamp.

The kits are meant to turn those older fixtures into sources you can run over DMX. External electronics drive the LED, so the module can work hard without overheating the housing. Sockets, LED units and wattage are matched to the fixture’s cooling and size.

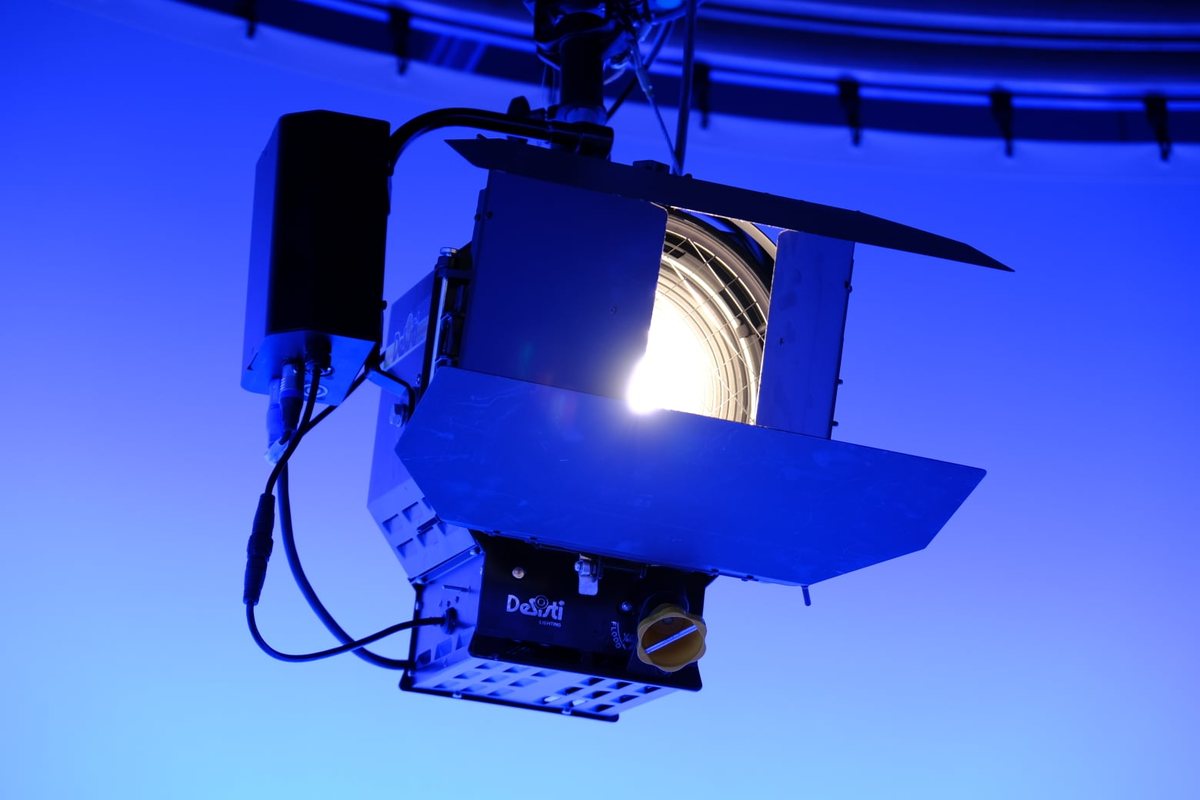

A studio spotlight throwing a bright beam

Strong output

The LED output is in the same class as the halogen or discharge lamp it replaces.

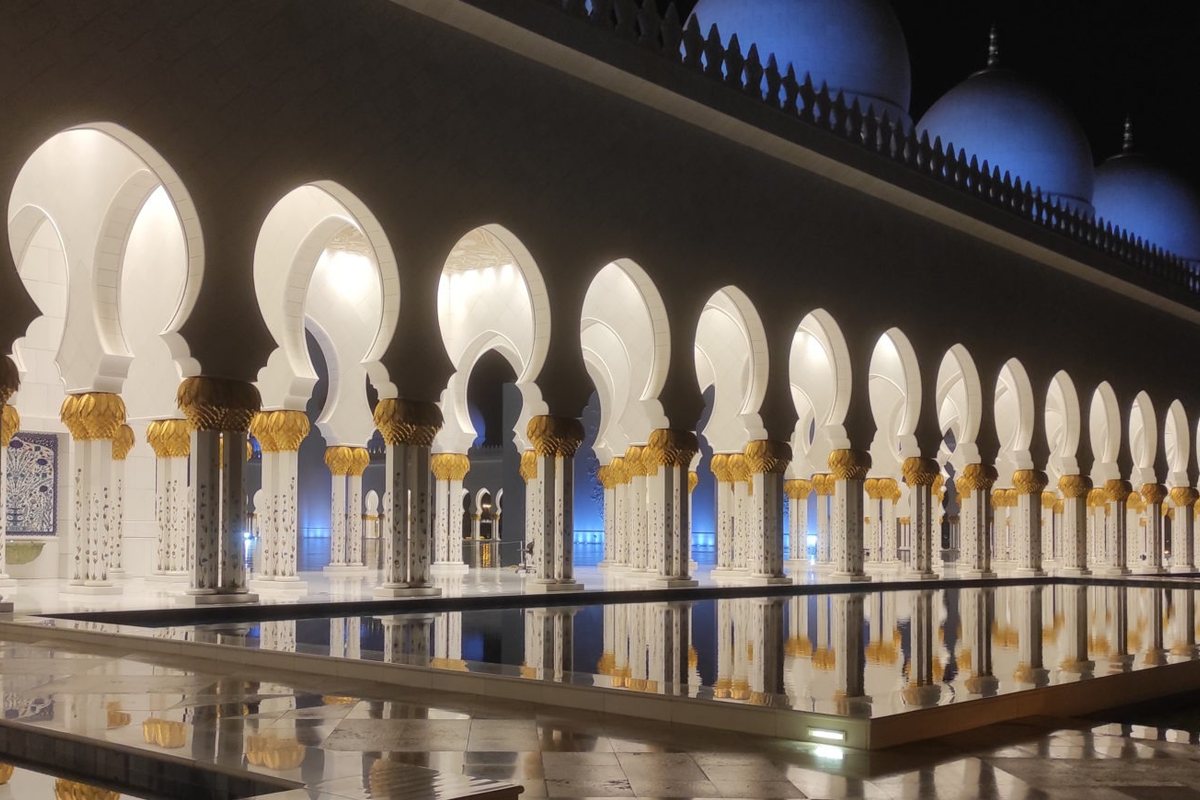

White and blue architectural lighting along a colonnade

High quality light

High CRI options are there when colour rendering matters more than raw output, including HD broadcast and museum work.

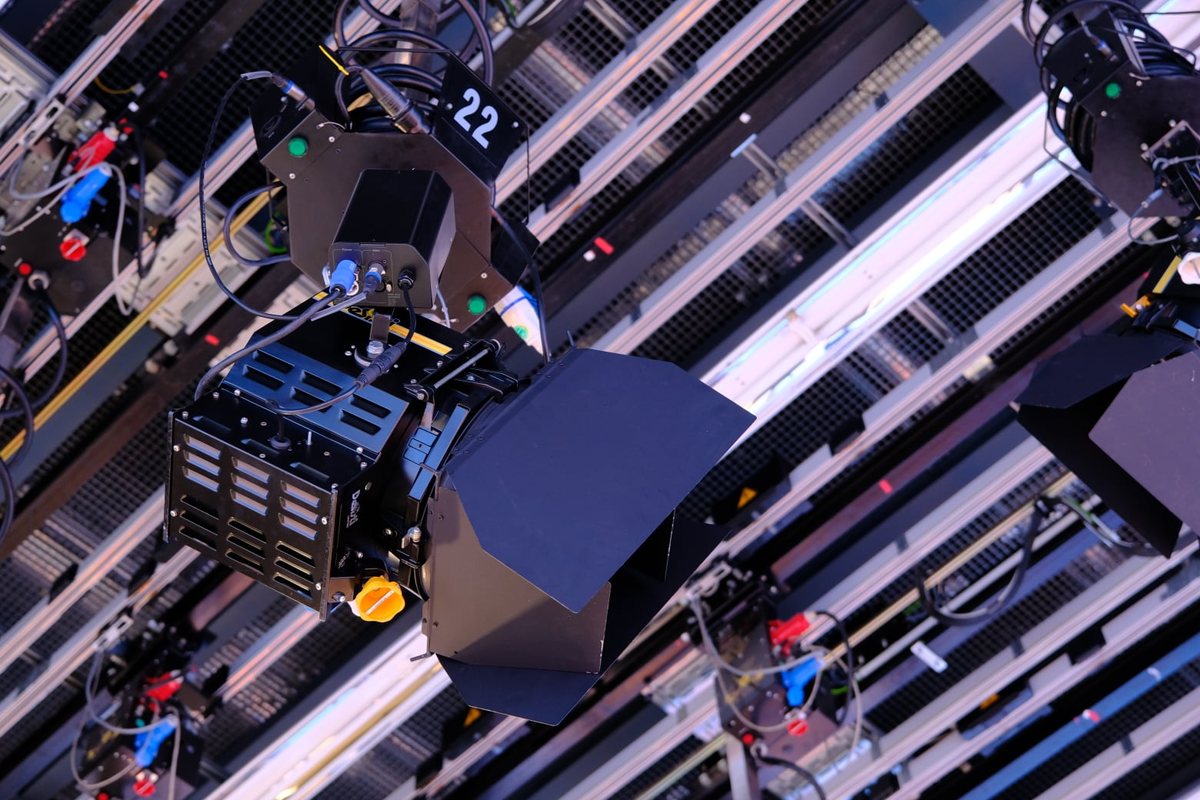

A retrofit kit and its external control box on a studio lighting grid

Plug and play

Socket choices and a matched LED group. Fixed white at 3,200 K and 5,600 K, in CRI 90 and 97. VariWhite, with CRI above 95, is available on the ReLite Kit. Installation is straightforward and routine maintenance drops.

The ReLite Range

Four retrofit options for existing fixtures — from compact Mini ReLite to dimmable and high-output kits.

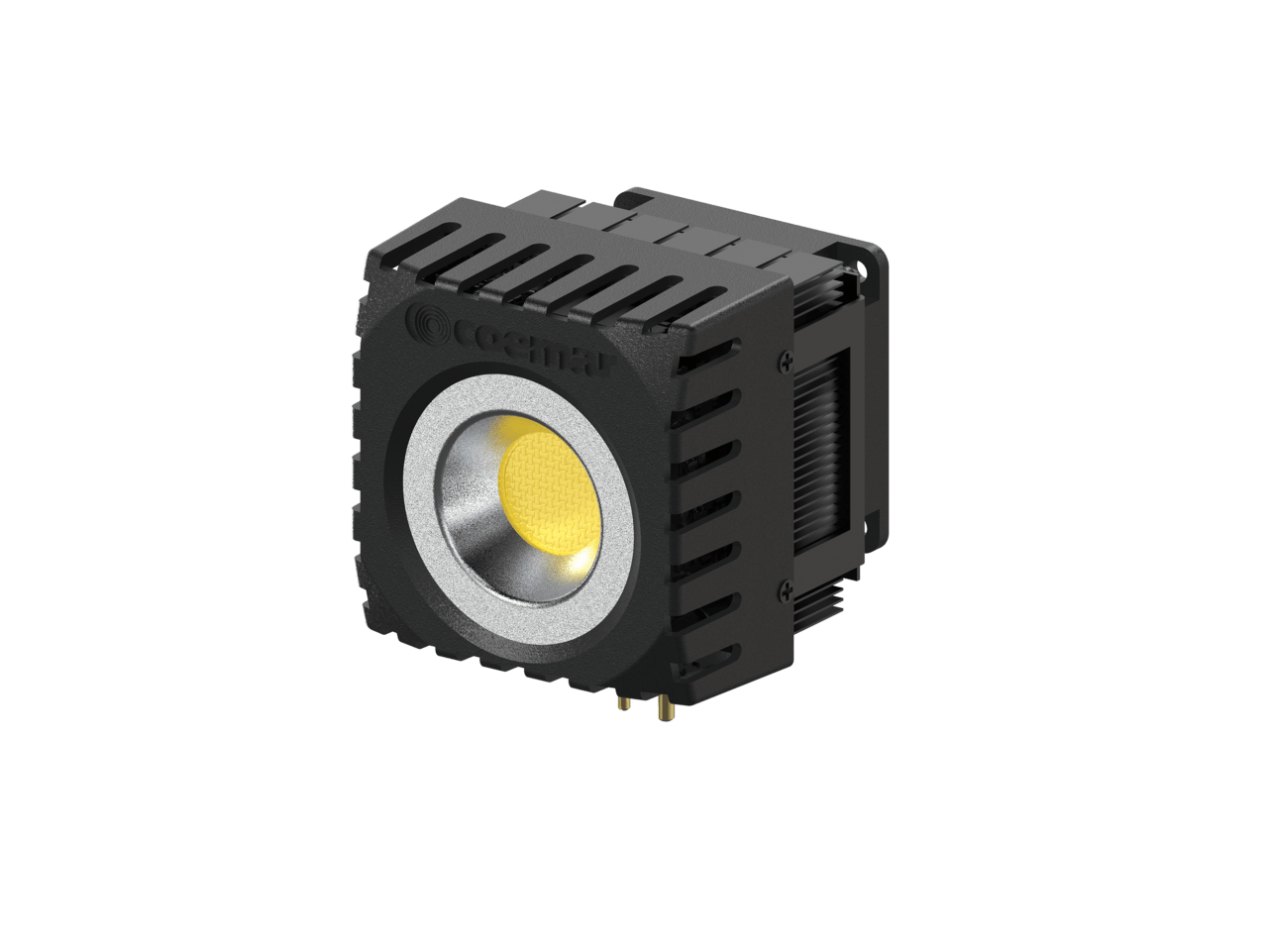

Mini ReLite Led

A compact LED lamp for retrofitting 300, 500 and 650 W incandescent studio and theatre fixtures. It is offered in tungsten and daylight white.

Tungsten

  • Fixed white, 3,200 K
  • CRI above 90, or above 97
  • COB LED, 50,000 hours to 80% output

Daylight

  • Fixed white, 5,600 K
  • CRI above 90, or above 97
  • COB LED, 50,000 hours to 80% output

Shared details

  • Dims from 1% to 100% on existing TRIAC AC or IGBT dimmers, flicker-free
  • Fits fixtures such as Arri, De Sisti and ADB
  • 73.7 × 76.5 mm, 77 mm high (96 mm with connectors), 0.3 kg
  • 90–240 V, 50/60 Hz, 70 W maximum
  • Bases: GX9.5, GY9.5 and G22
  • IP20, black aluminium and technopolymer body, 0°C to 40°C
View on Coemar

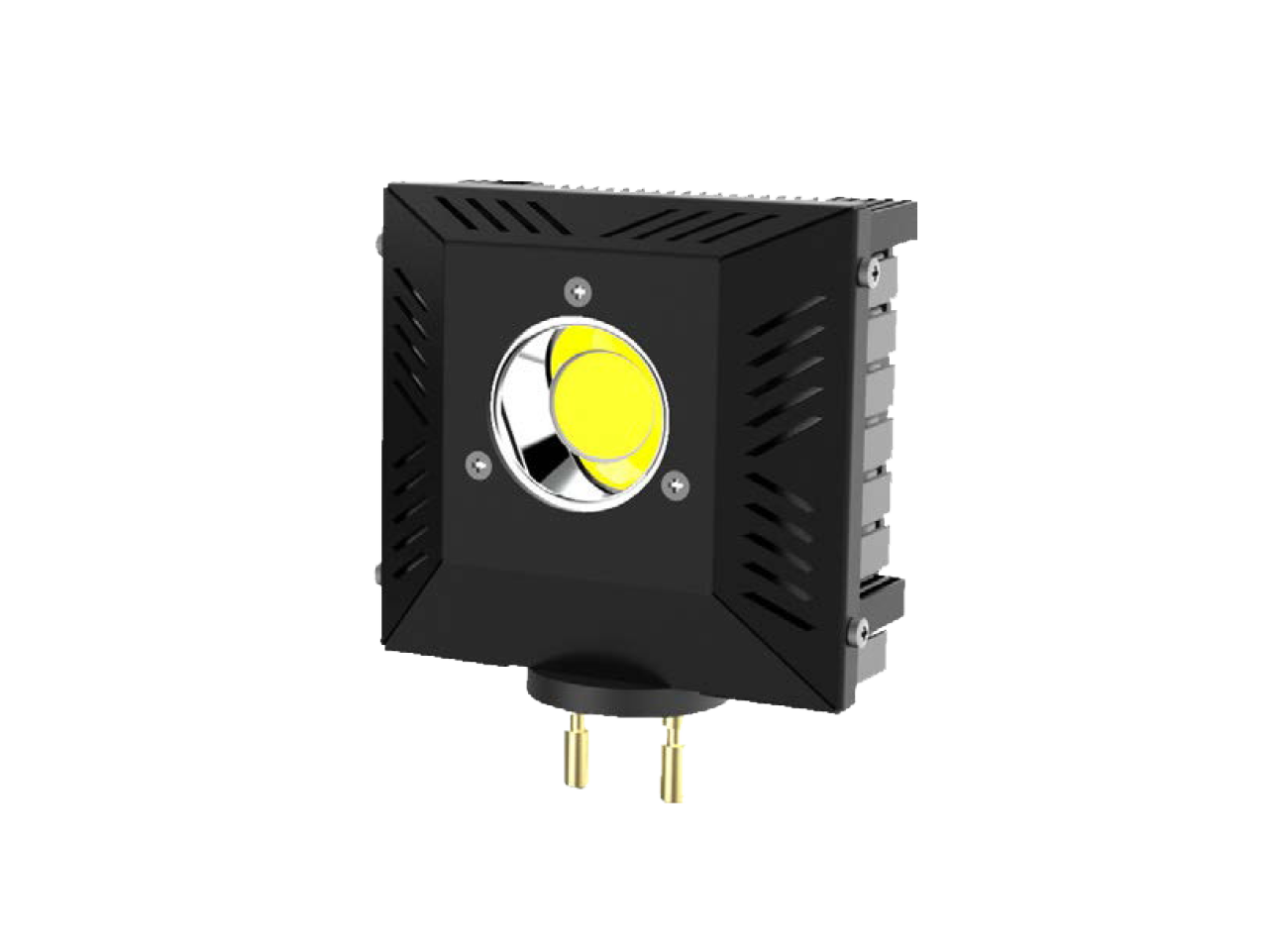

ReLite Led Kit DIM

A retrofit kit for older halogen fixtures. The electronics sit in an external box, so the housing runs cooler and the output is higher than the standard ReLite. It can be run from existing dimmers, an onboard knob, or DMX.

Tungsten

  • Fixed white, 3,200 K
  • CRI above 90, or studio above 95
  • COB LED, 50,000 hours to 80% output

Daylight

  • Fixed white, 5,600 K
  • CRI above 90, or studio above 95
  • COB LED, 50,000 hours to 80% output

Shared details

  • Dims from 1% to 100% with four curves, from a dimmer, onboard potentiometer, or DMX
  • 5 DMX channels, RDM, flicker-free
  • 190 × 170 × 85 mm, 3 kg
  • 90–250 V, 50/60 Hz, 90–200 W depending on the module and fixture
  • PowerCon in, DMX 5-pin in and out
  • IP20, black aluminium and technopolymer body, 0°C to 40°C
View on Coemar

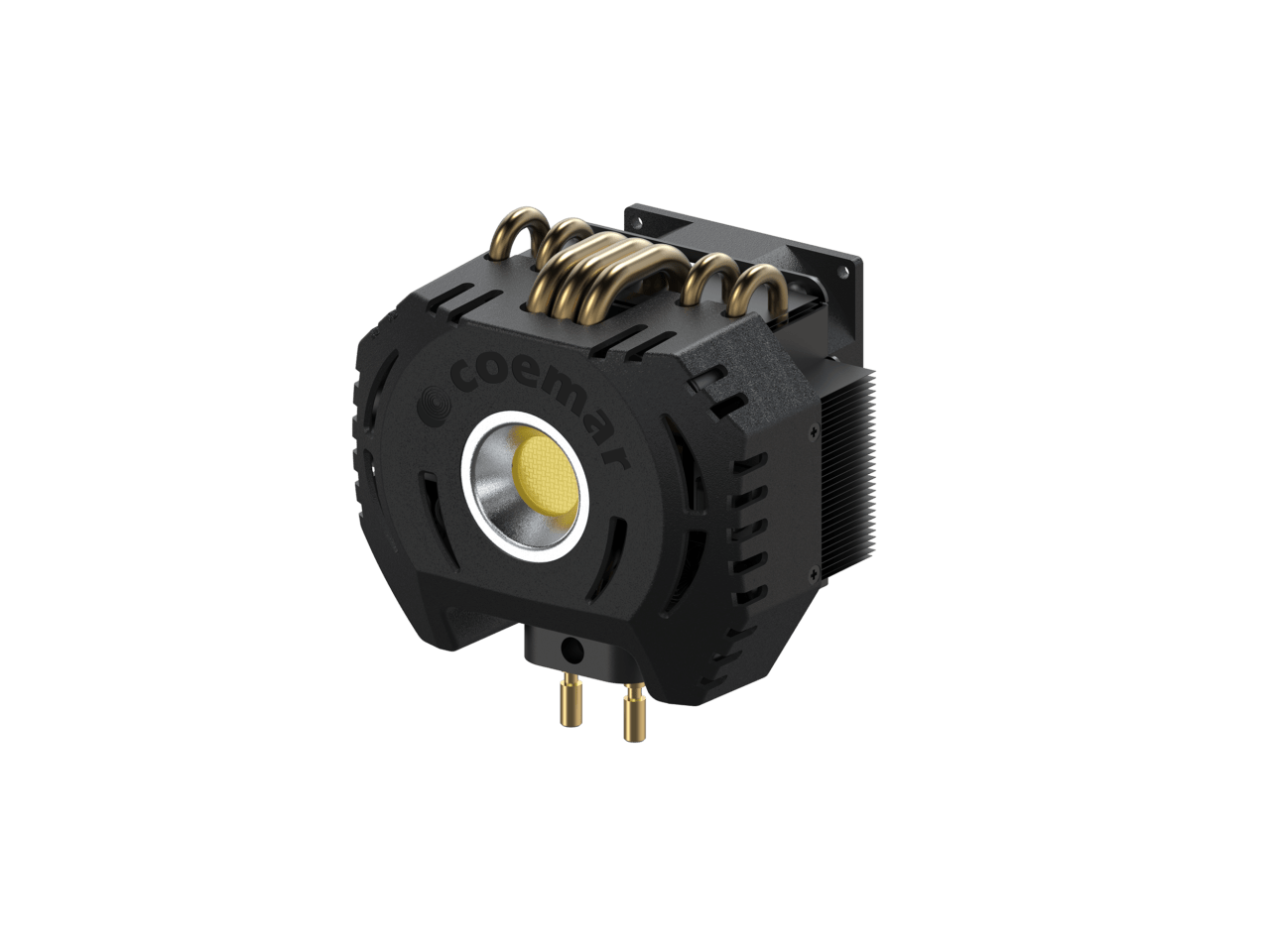

ReLite Led HD

A higher-output retrofit for 1 K and 2 K incandescent fixtures. An internal sensor holds the light level steady as the housing warms, and the fan can be set to low or automatic.

Tungsten

  • Fixed white, 3,200 K
  • CRI above 90, or above 97
  • COB LED, 50,000 hours to 80% output

Daylight

  • Fixed white, 5,600 K
  • CRI above 90, or above 97
  • COB LED, 50,000 hours to 80% output

Shared details

  • Dims from 1% to 100% on existing TRIAC AC or IGBT dimmers, flicker-free
  • Fan up to 28 dBA, with low and auto settings
  • 99.8 × 134.4 mm, 123.2 mm high (145 mm with connectors), 0.8 kg
  • 100–240 V, 50/60 Hz, 160 W maximum
  • G22 base, with a G38 adapter available
  • IP20, black aluminium and technopolymer body, 0°C to 40°C
View on Coemar

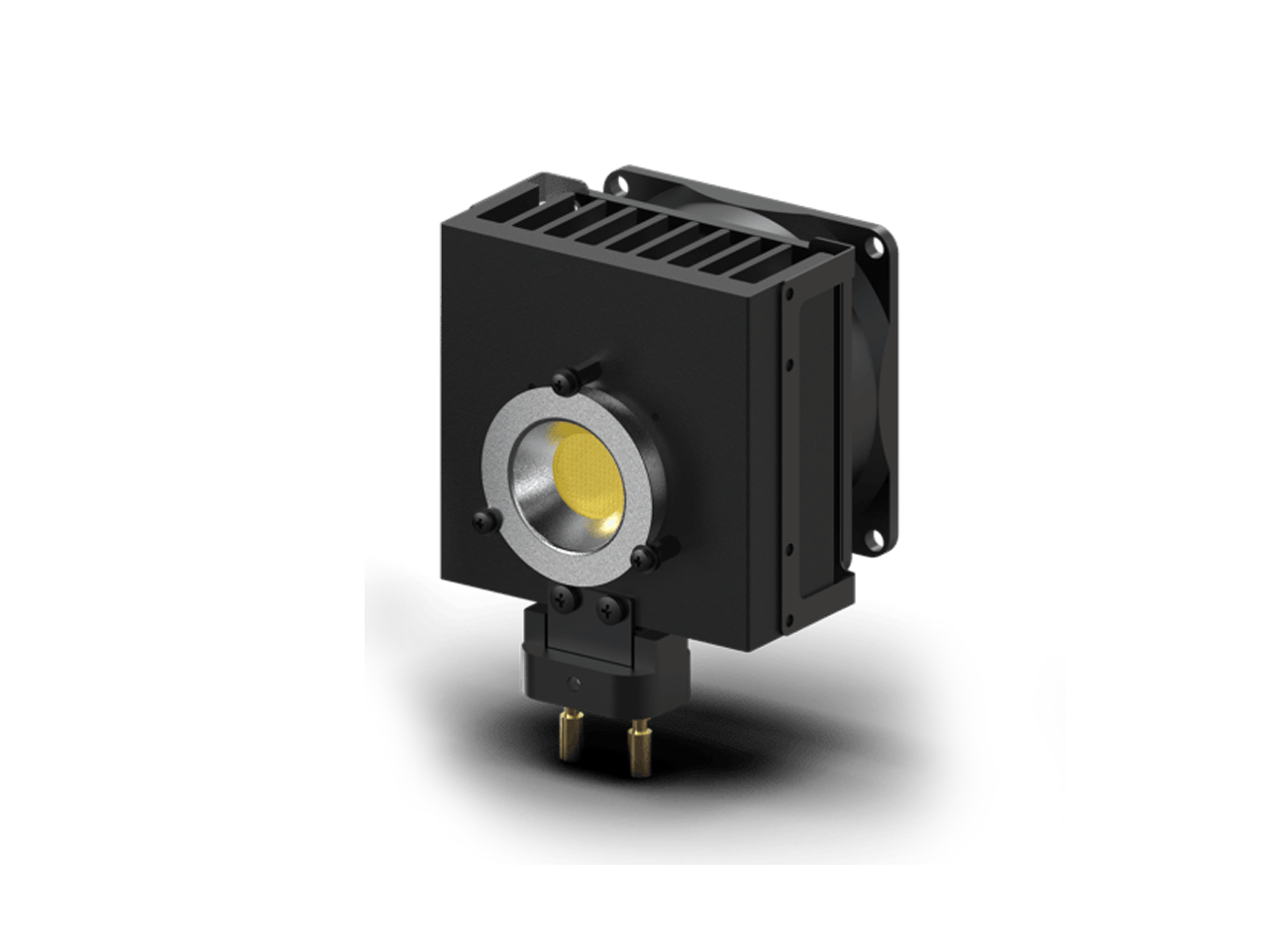

ReLite Led Kit +

Turns a fixed white halogen fixture into a DMX-controlled LED source. The + electronics and OLED display cover tungsten, daylight, and variable white.

Tungsten

  • Fixed white, 3,200 K
  • CRI above 90, or above 95

Daylight

  • Fixed white, 5,600 K
  • CRI above 90, or above 95

VariWhite

  • Variable white, 2,700 K to 6,500 K
  • CRI above 90, or above 95

Shared details

  • Smooth dimming with selectable curves, flicker control from 600 Hz to 20,000 Hz
  • DMX-512 and RDM, optional wireless, graphic OLED display
  • Fan modes: Silent, Studio, Auto, and DMX
  • Medium/large: 210 × 124 × 90 mm, 2.5 kg. Small: 190 × 110 × 73 mm, 1.5 kg
  • 80–264 V, 50/60 Hz, 90–620 W depending on the module and fixture
  • PowerCON TRUE1 in and out, DMX 5-pin in and out
  • COB LED, 50,000 hours to 80% output. IP20, 0°C to 40°C
View on Coemar

How the kits work

The ReLite series runs from lamp-style retrofits to full kits. The shared gains are simpler installation, lower energy use and less maintenance, with more flexible control than the original lamp.

On the kits, the electronics sit in an external box. That keeps heat out of the fixture, so the light level stays steadier as the housing warms. A fixed-white fixture can also become a variable-white source.

Where it has been used

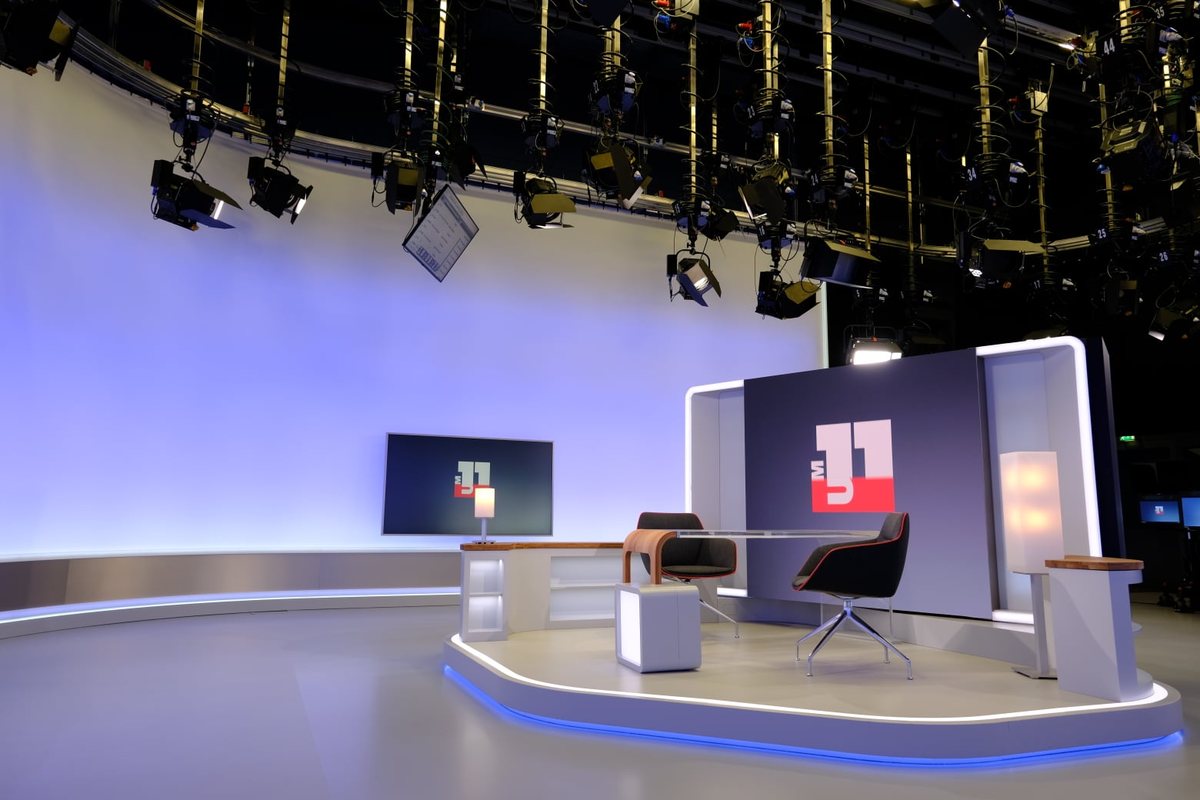

The MDR studio set in Magdeburg, lit from an overhead grid
Germany · Broadcast

MDR

Mitteldeutscher Rundfunk, a broadcast and entertainment installation.

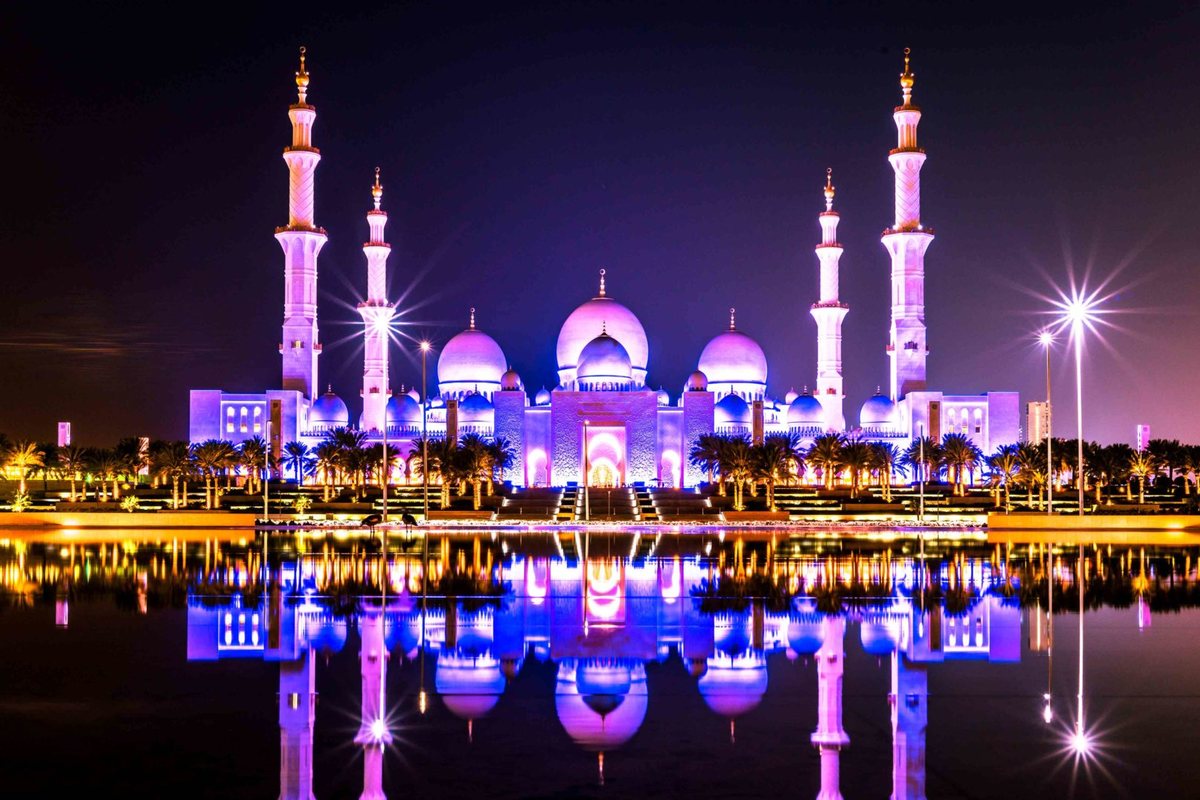

Sheikh Zayed Grand Mosque at night, lit in white and blue
Abu Dhabi · House of worship

Sheikh Zayed Grand Mosque

An architectural retrofit at the Sheikh Zayed Grand Mosque.
